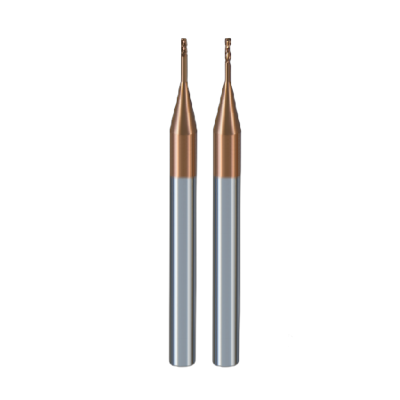

Micro diameter 2/4 flutes square end mills

Please choose the reasonable minium suspension tool, when the tool suspension increase.
Please reduce the cutting speed and feed rate.
Please check the cutting depth and machine stability, choose the reasonable cutting speed andfeed rate.
Coating with excellent heat resistance, suitable high-speed processing.
Widely used in hardness from ordinary steel to the HRC50 hardness of materials.

Micro Diameter 2/4 Flutes Square End Mills are meticulously engineered to provide superior performance in micro-milling applications. Available in both 2-flute and 4-flute configurations, these tools are ideal for a variety of materials and machining conditions. Whether you’re working on prototypes, fine features, or intricate components, our micro end mills deliver unmatched precision and efficiency.

  • High Precision: These end mills are crafted to deliver exceptional accuracy, making them perfect for detailed work and fine machining tasks. The precise geometry ensures minimal deviation and high-quality finishes.
  • Versatility: Available in both 2-flute and 4-flute designs, these end mills offer flexibility for different milling needs. The 2-flute design is ideal for effective chip evacuation, especially in softer materials, while the 4-flute design provides a smoother finish and is suitable for harder materials.
  • Superior Surface Finish: The sharp cutting edges and optimized flute design ensure a superior surface finish, reducing the need for secondary operations and enhancing overall productivity.
  • Durability: Made from high-quality carbide, these end mills offer excellent wear resistance and longevity. The robust construction ensures that the tools maintain their cutting performance even under challenging conditions.
  • Advanced Coatings: Many of our micro end mills feature advanced coatings that enhance tool life and performance. These coatings reduce friction, increase wear resistance, and improve heat dissipation.

Product Details

Product number
Item Code
Blade diameter
(D)
Shank diameter
(d)
Blade length
(Ap1 max)
Full length
(L)
A-04D0004 0.4 4 0.8 50
A-04D0005 0.5 4 1.0 50
A-04D0006 0.6 4 1.2 50
A-04D0007 0.7 4 1.4 50
A-04D0008 0.8 4 1.6 50
A-04D0009 0.9 4 1.8 50
A-03D0004 0.4 3 0.8 40
A-03D0005 0.5 3 1.0 40
A-03D0006 0.6 3 1.2 40
A-03D0007 0.7 3 1.4 40
A-03D0008 0.8 3 1.6 40
A-03D0009 0.9 3 1.8 40
